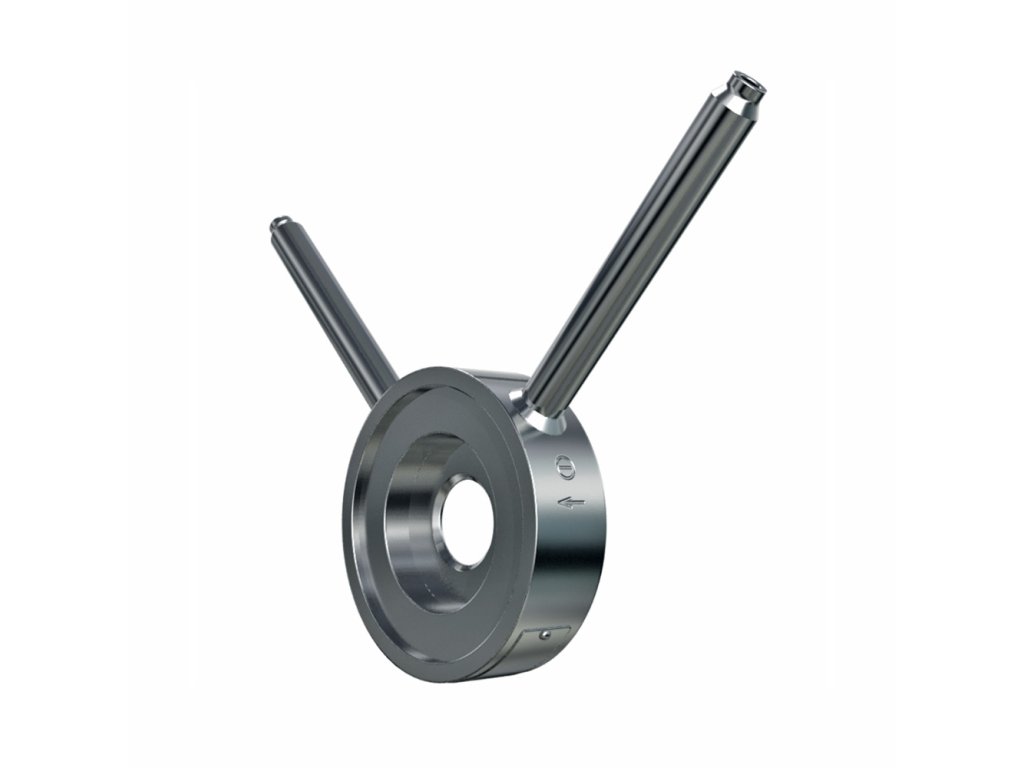

CB Spot measuring orifice

Product detailed description

Product features CB Spot measuring orifice

• Complies with the requirements of ČSN EN ISO 5167-1 and ČSN EN ISO 5167-2
• Nominal diameter DN 15 to DN 1000, 1/2" to 40" according to ANSI
• Nominal pressure PN 6 to PN 320, Class 150 to 2500 according to ANSI
• Materials: 1.7335, 1.7715, 1.7380, 1.4541, 1.4571
• Operating temperature up to 600 °C (depending on material)
• Outlet angle 0 to 180°, double outlet
• Optional outlet configurations, including coplanar flanges
• Available with mounting flanges
