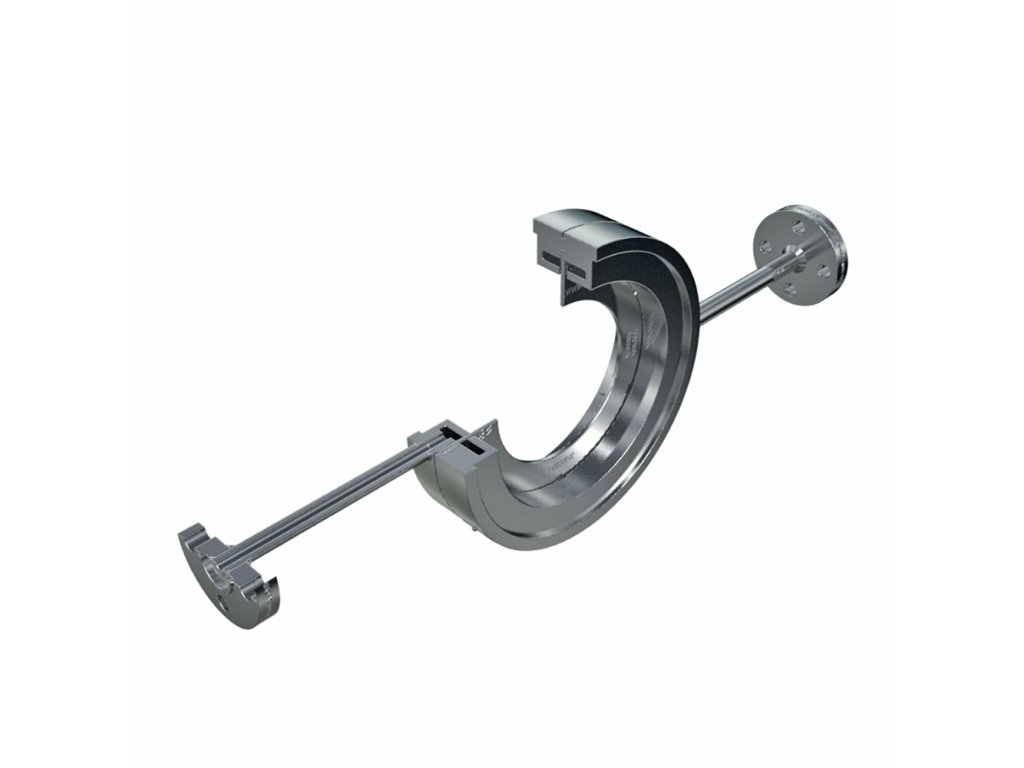

CK measuring orifice with chamber sampling

Product detailed description

Product features CK measuring orifice with chamber sampling

• Complies with the requirements of ČSN EN ISO 5167-1 and ČSN EN ISO 5167-2
• Nominal diameter DN 50 to DN 300, 2" to 12" according to ANSI\
• Nominal pressure PN 6 to PN 160, Class 150 to 1500 according to ANSI
• Material: P265GH, 1.4541, 1.4571
• Operating temperature up to 600 °C (depending on material)
• Sampling angle: 0 to 180°, dual sampling
• Optional sampling connections
• Available with mounting flanges
