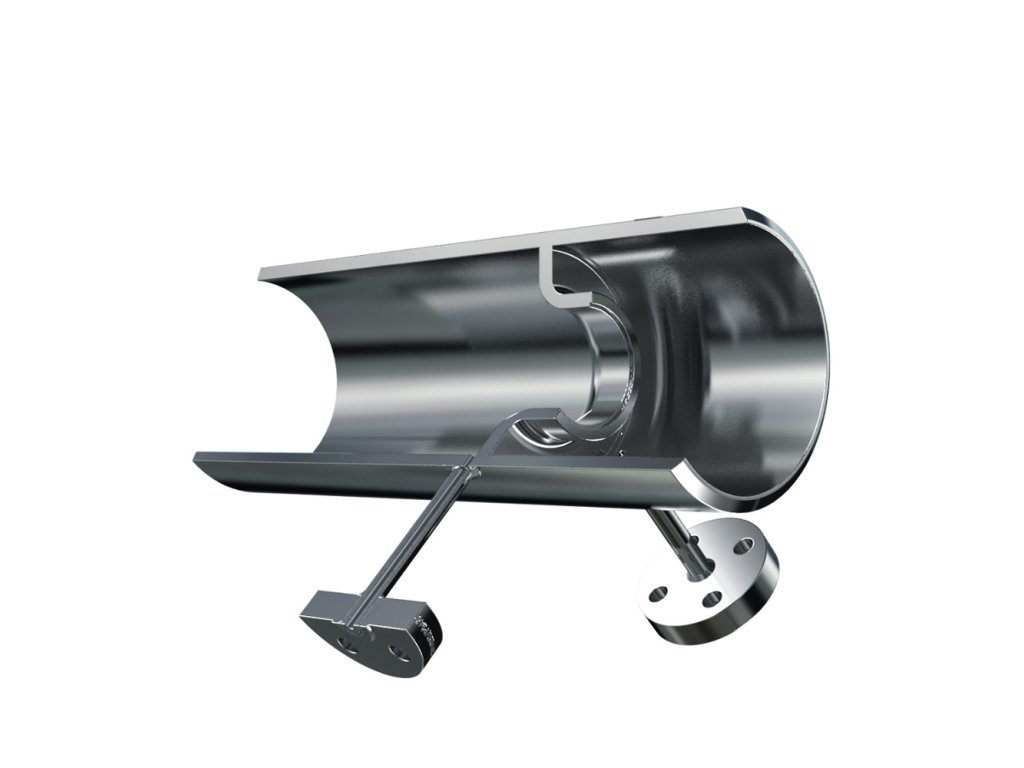

DBV Nozzle with spot sampling, welding type

Product detailed description

Product features DBV Nozzle with spot sampling, welding type, in accordance with ČSN EN ISO 516

• Nominal diameter DN50 to DN600
• Nominal pressure PN6 to PN250
• Temperature range up to 600 °C (620 °C)
• Material P235GH, 1.5415, 1.7335, 1.7715, 1.7380, 1.4903, 1.4541, 1.4571
• Angle of extraction pipes 0 to 180° or double extraction
• Spot version of extractions
• Length of straight sections:
  - standard 2D in front of and 0,5D behind nozzle
  - optional according to agreement with the manufacturer
• Documentation for certification acc. to Directive PED 2014/68/EU
