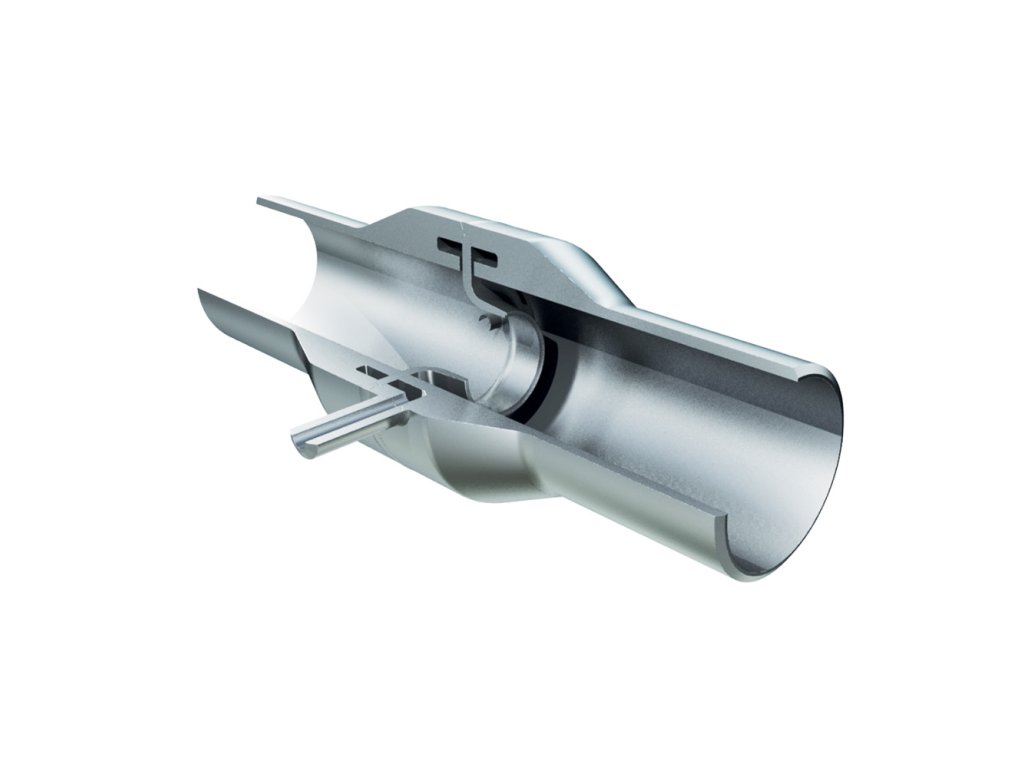

DKV ISA1932 nozzle with chamber sampling, weld-in type

Product detailed description

Product features ISA1932 nozzle with chamber sampling, weld-in type, in accordance with ČSN EN
ISO 5167

• Nominal diameter DN 50 to DN 300.
• Nominal pressure PN 6 to PN 250.
• Temperature range up to 600 °C (620 °C)
• Materials: P235GH, 1.5415, 1.7335, 1.7715, 1.7380, 1.4903, 1.4541, 1.4571
• Outlet angle 0 to 180°, or double;
  Optional outlet terminations;
• Straight section lengths:
  – standard 2D before and 2D after the nozzle;
  – optional upon agreement with the manufacturer.
• Documentation for certification according to PED Directive 2014/68/EU.
