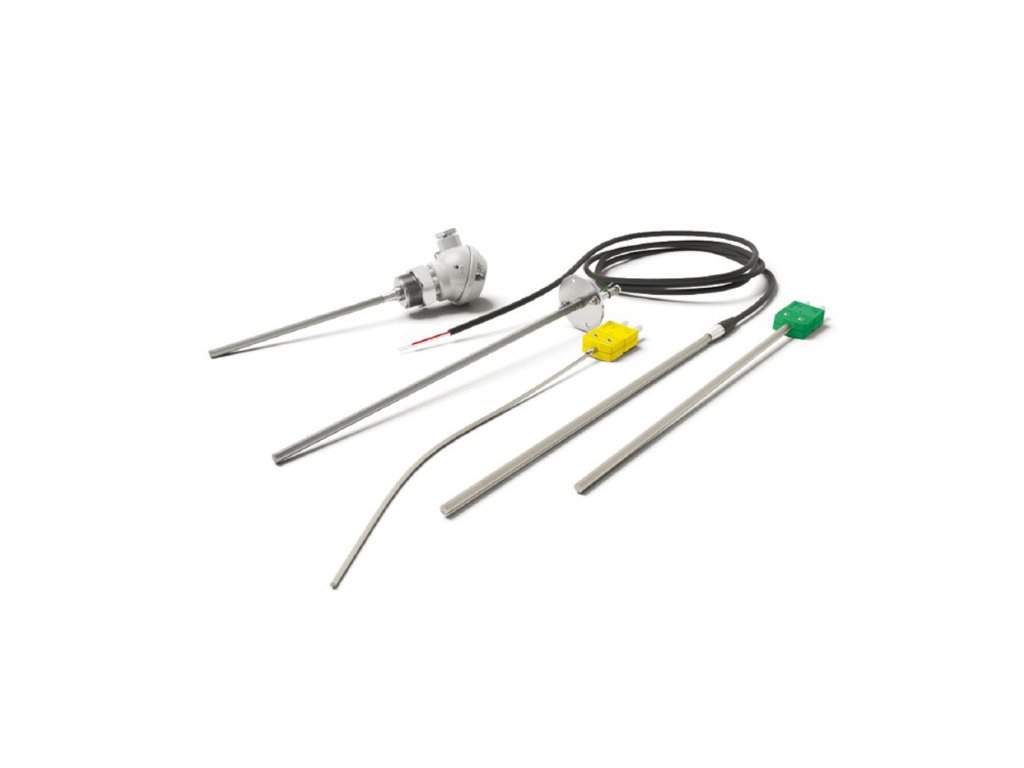

FlexiTEMP® 60 Sheath resistance and thermocouple temperature sensors

Product detailed description

Product features FlexiTEMP^® 60 Sheath resistance and thermocouple temperature sensors

Odporové a termoelektrické snímače teploty bez ochranné armatury FlexiTEMP^® 60 jsou určeny pro aplikace, kde vyniknou jejich hlavní přednosti jako např. rychlá reakce na změny teploty, ohebnost stonku, malé rozměry a odolnost pláště proti korozi.

High accuracy and stability of output signal are strong sides of resistance sensors. Thermoelectric sensors are very resistant to high pressure, usable in vacuum and have higher stability of output signal in comparison to wire thermocouples.

Standard thermocouple sensors with isolated measuring end are due to its electromagnetic shielding suitable for work together with measuring centers and control systems.

Product features:

• Resistance sensor 1x / 2x Pt100.
• Thermocouple 1x / 2x “J“, “K“, “N“,T“.
• Measuring range
    -200 to +700 °C (Pt100),
    -200 to +800 °C (“J“),
    -200 to +1300 °C (“K“, “N“),
    -200 to +350 °C (“T“).
• Accuracy class
    A, B according to ČSN EN 60751
    1, 2, 3 according to  ČSN EN 60584-1.
• Sheath material stainless steel 1.4541, 1.4404, Inconel 600, Nicrobell/Pyrosil
• Outside diameter of 1 to 6 mm.
• Selectable nominal length L: 0.1 to 50 m.
• Fast response to temperature changes.
• Flexible stem.
• Optional version of cold junction, with flying leads, connected compensating cable, flat connector, LEMO connector, flange and MA head
• Intrinsically safe version
  (Ex) II 1/2G Ex ia IIC T6…Tx°C Ga/Gb,
  (Ex) II 1/2D Ex ia IIIC T200 85°C…T200 x°C Da/Db.
