Metrological verification and installation of specified measuring instruments.

Product detailed description

Metrological verification and installation of specified measuring instruments.

• Design and supply of measuring instruments and measuring assemblies.
• Verification, installation, and removal of specified measuring instruments.
• Registration for the installation and repair of specified measuring instruments from well-known manufacturers.
• Outsourcing in the area of measuring instrument records, monitoring deadlines, and ensuring the required tasks are performed.
• Consulting in the area of specified measuring instruments and service line.

We develop and supply measuring instruments and measuring assemblies for liquid and gas flow and measuring assemblies for heat meters and other areas of measurement from our product range.

We specialize in the design and implementation of assemblies for measuring heat transferred by steam in accordance with MPM 18-95, using direct, indirect, and substitute methods, and for measuring heat in condensate.

We perform calculations of primary elements (orifices, nozzles, Venturi tubes) in accordance with the requirements of the ČSN EN ISO 5167:2003 standard.

We offer comprehensive services related to the initial and subsequent verification, installation, and removal of specified measuring instruments. We provide verification at our own authorized metrology center K145 and at selected partners.

We perform the installation and repair of specified measuring instruments based on registration No. 500-OR-0016-17 at the Czech Metrology Institute (ČMI) for the following categories of measuring instruments:

• Components of meters and measuring assemblies for fluid flow

  • Gas, hot water, and cold water flow sensors
  • Pressure and pressure difference sensors
  • Temperature sensors, including built-in transmitters
  • Evaluation units for water, gas, and other liquids
• Heat and cooling meters and their components

  • Carrier medium flow meters
  • Temperature sensors, including built-in transmitters
  • Pressure and pressure difference sensors
  • Evaluation units for combined heat and cooling meters
  • Compact heat and cooling meters
• Water flow meters

  • For cold and hot water
  • Water meters for cold and hot water, used for allocating costs to end consumers
• Automatic level meters on stationary tanks
• Control alcohol meters used to measure the volume of alcohol produced
•  Meters and measuring assemblies for measuring the flow of liquids other than water or liquefied gases

We install specified meters, including:

• Abbreviated tests of gas volume calculators and evaluation units for gases.
• Zeroing of pressure difference sensors and entering water column corrections for pressure transmitters for steam heat measurement assemblies.

Metrological verification of measuring circuits according to TPM 3723-03 requirements.

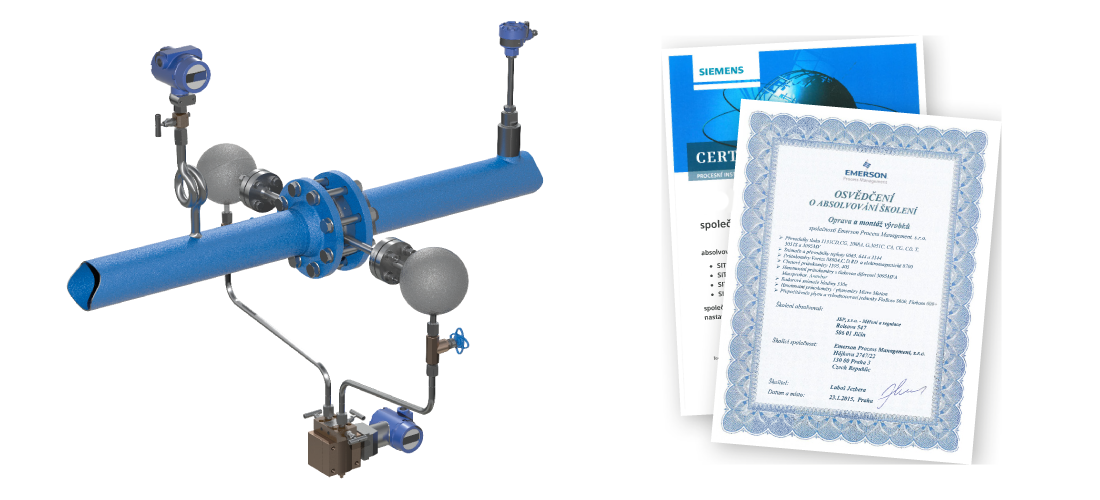

Example of a measuring assembly for measuring heat transferred by superheated steam - direct method

We offer comprehensive outsourcing services in the field of specified measuring instruments - registration and monitoring of verification expiration dates, verification, subsequent assembly, disassembly and updating of instrument records.

We offer training on installation and legislative requirements in the field of specified measuring instruments. The training is intended for organizations that install type-approved products from JSP and Aquametro, as well as for designers and users of specified measuring instruments.

We provide consulting services in the field of specified measuring instruments to our customers and our service line is available to them at +420 605 951 061.
