Modutemp® 70 series C Thermocouple temperature probes with ceramic protection tube

Product detailed description

Product features: Modutemp^® 70 series C thermocouple temperature probes with ceramic protection tube

• More cost-effective alternative to expensive straight temperature sensors with wire thermocouples.

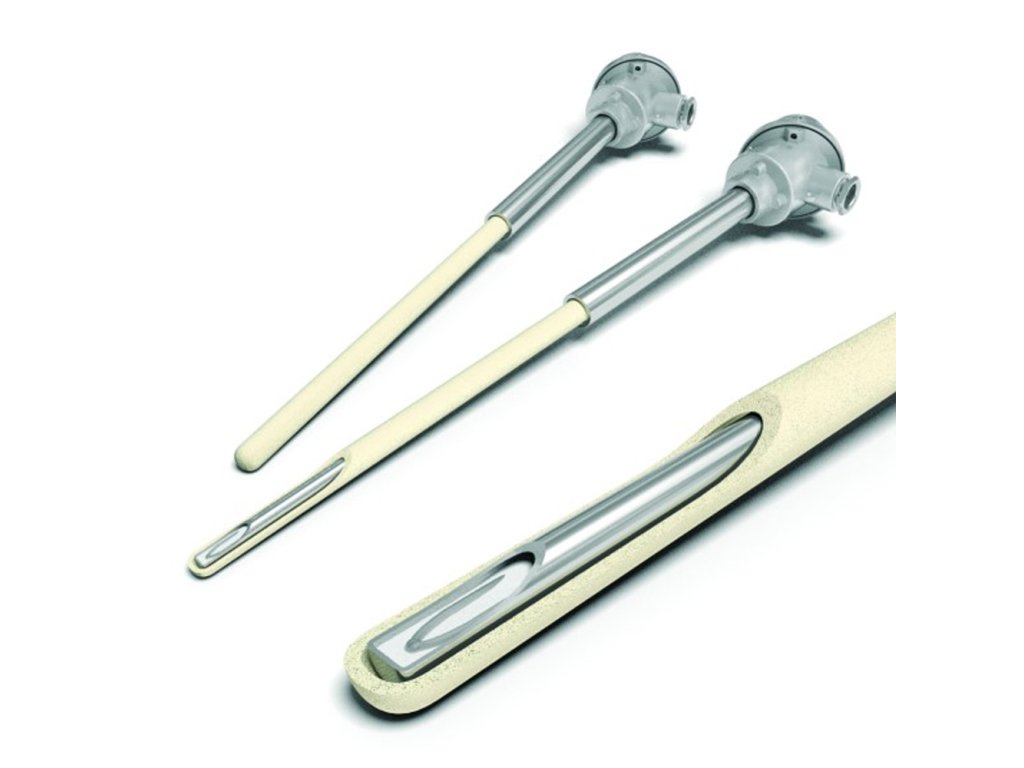

• The sensor combines a sheathed measuring insert and a ceramic protective tube, including a metal support tube.
• Thermocouple 1x / 2x “K”, “N”.
• Measuring range -200 to +1300 °C (“K”, “N”).
• Accuracy class 1, 2 according to EN 60584-1.
• Measuring insert stem material: Inconel 600, Nicrobell/Pyrosil.
• Protective tube material ceramic C610 or C799.
• Optional headmounted transmitter with output 4 to 20 mA, HART, Profibus, Fieldbus, including version with galvanic isolation and intrinsically safe version
• Housing IP 53 (IP 65).
