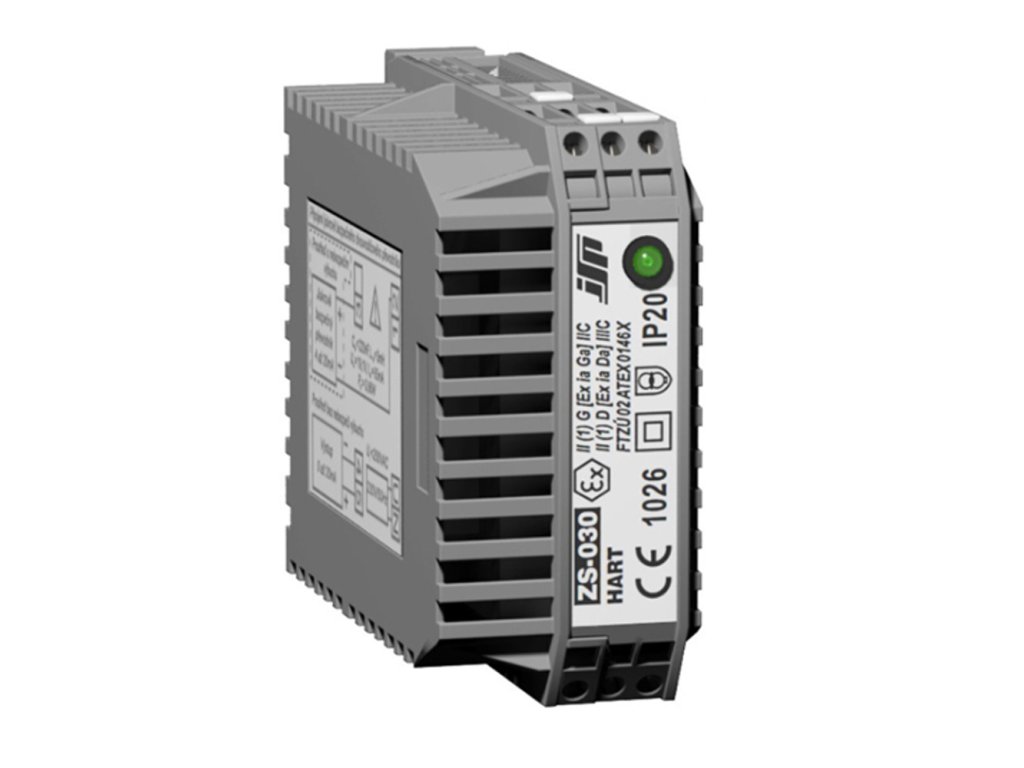

ZS-030 Intrinsically safe stabilized power supply with circuit isolation

a0045

Input 230 VAC • Output 15–19 VDC • 0/4–20 mA isolator with HART support • Ex ia version

Detailed information

Product detailed description

Product features ZS-030 Intrinsically safe stabilized power supply with circuit isolation

Galvanic isolation of current signal and power supply for intrinsically safe transmitter
Isolation of 4(0) to 20 mA signal with accuracy 0,1 %, or conversion of 4 to 20 mA signal into 0 to 20 mA
Two-way transmission of HART communication signal across galvanic isolation
Electrical resistance 4000 VAC against the main power and 2500 VAC output against the transmitter power supply
Housing IP 20 (mounted on rail DIN TS 35 and TS 32)
Intrinsic safety
High resistance to interference according to EN 61326-1 (industrial environment)
