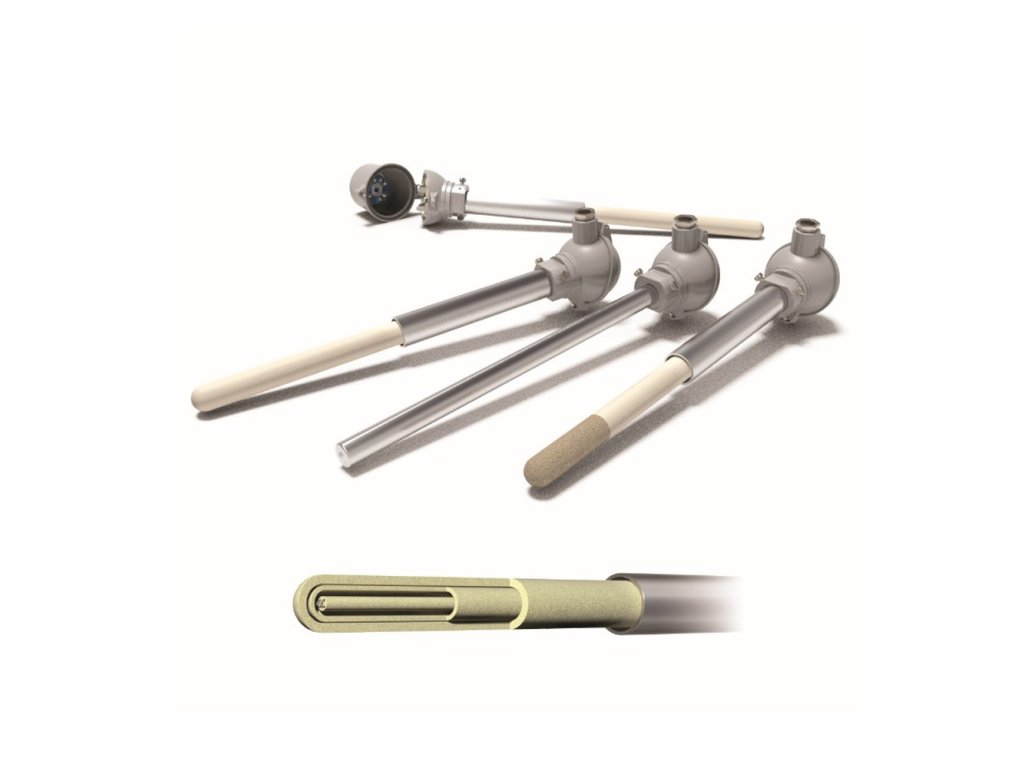

CeraTEMP® 80 Straight thermocouple temperature sensors with protective tube

Product detailed description

Product features CeraTEMP® 80 Straight thermocouple temperature sensors with protective tube

Straight thermocouple temperature sensors CeraTEMP® 80 are designed for remote temperature measurement in furnaces and incinerators and other technological devices.

These sensors are mounted on walls of furnaces by fixing shift pine union or flange.

The sensors can be supplied with transmitter of output signal from 4 to 20 mA, HART, Profibus, Fiedbus embedded into the lid of sensor head.

Product features:

• Wire thermocouple “J“, “K“, “R“, “S“, “B“ with branch diameter 0.5, 1, 2 or 3 mm
• Measuring range
    -40 to +900 °C ("J"),
    -40 to +1200 °C ("K"),
    0 to +1600 °C ("R", "S"),
    +300 to +1800 °C ("B")
• Accuracy class
    1, 2, 3 according to EN 60584-1
• Protective tube material
    steel  1.4541, 1.4845,  1.4762, Kanthal AF, ceramics SiC, C530, C610, C799, sapphire
• Optional length of protective tube
• Mounting of temperature sensor by fixing shift pipe union or flange.
• Housing IP 65
• Optional headmounted transmitter with output 4 to 20 mA, HART, Profibus, Fieldbus, including version with galvanic isolation and intrinsically safe version
