Measurement and control technology

• Resistance / thermocouple sensors • Different types of cold junction end

• Resistance / thermocouple sensors • Different types of fittings and heads

• Thermocouple sensors • More cost-effective alternative to expensive straight temperature sensors with wire thermocouples

• Wire-type thermocouple sensors • Max. range +1800 °C • One or more protective tubes

• Pressure up to 400 bar, temperature up to 620 °C. • For measuring inserts with a diameter between 3 and 8 mm

• Ranges up to 700 bar • 4–20 mA output • Accuracy: 1%, 0.5%, or 0.25%

• Ranges from 2 kPa to 40 MPa • 4–20 mA HART output • Accuracy up to 0.1%

• Ranges from 200 Pa to 10 MPa • 4–20 mA HART output • Accuracy up to 0.075%

• Measuring range: 0 to 5 / 10 / 15 m • Output: 4 to 20 mA / RS-485 Modbus RTU / 2 relays

• The orifices are designed for installation in pipes between flanges

• Spot measuring orifices designed for installation in piping between flanges • Complies with the requirements of ČSN EN ISO 5167-1 and ČSN EN ISO 5167-2

• Measuring orifices are designed for installation in pipelines between flanges • Complies with the requirements of ČSN EN ISO 5167-1 and ČSN EN ISO 5167-2

• Construction according to ČSN EN ISO 5167-1 and ČSN EN ISO 5167-2

• Jmenovitá světlost DN 50 až DN 500 • Jmenovitý tlak PN 16, PN 40

• Nominal diameter DN 50 to DN 600 • Nominal pressure PN 6 to PN 320

• Nominal diameter DN 50 to DN 300 • Nominal pressure PN 6 to PN 250

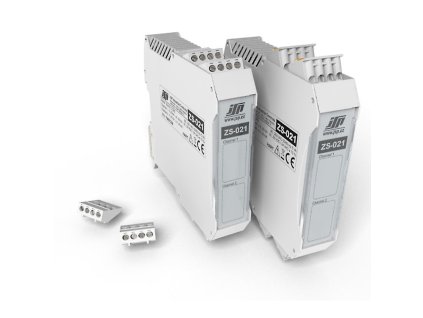

Input 230 VAC • Output 15–19 VDC • 0/4–20 mA isolator with HART support

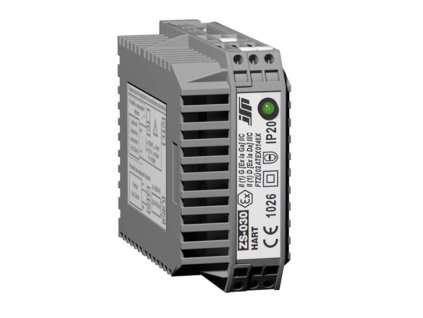

Input 230 VAC • Output 15–19 VDC • 0/4–20 mA isolator with HART support • Ex ia version

Input 230 VAC • Output 15–19 VDC • 0/4–20 mA isolator with HART support

• Universal input • Unbeatable value for money

• Universal input • Accuracy up to 0.05% • 5-year warranty

Accessories for temperature sensors

• Ranges from 4 kPa to 60 MPa • 4–20 mA LHP output • Accuracy up to 0.1%

• Measurement range up to 1.6 MPa • Output 4 to 20 mA • Accuracy 1%, 0.5%, and 0.25%

• Range from 10 kPa to 10 MPa (1 to 100 m water column)

• Adjustable range from 1 to 160 m of water column.

• Ranges from 4 kPa to 60 MPa • 4–20 mA LHP output • Accuracy up to 0.1%

• Ranges from 4 kPa to 60 MPa • 4–20 mA HART output • Accuracy up to 0.1%

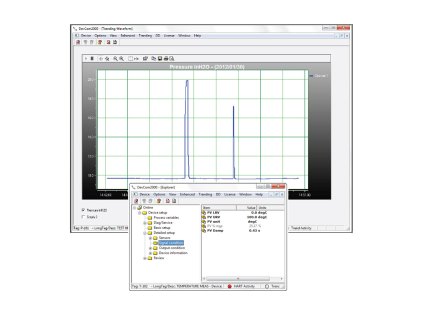

Standalone software for Windows PCs. Requires a HART modem with USB for connection to devices.

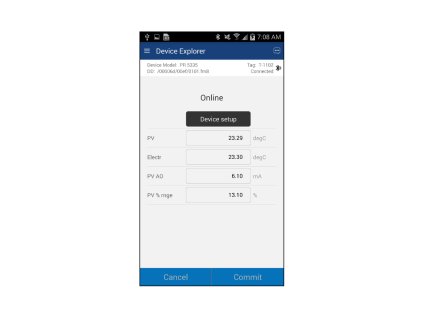

Standalone application for Android devices. Requires a HART modem with Bluetooth to connect to devices.
