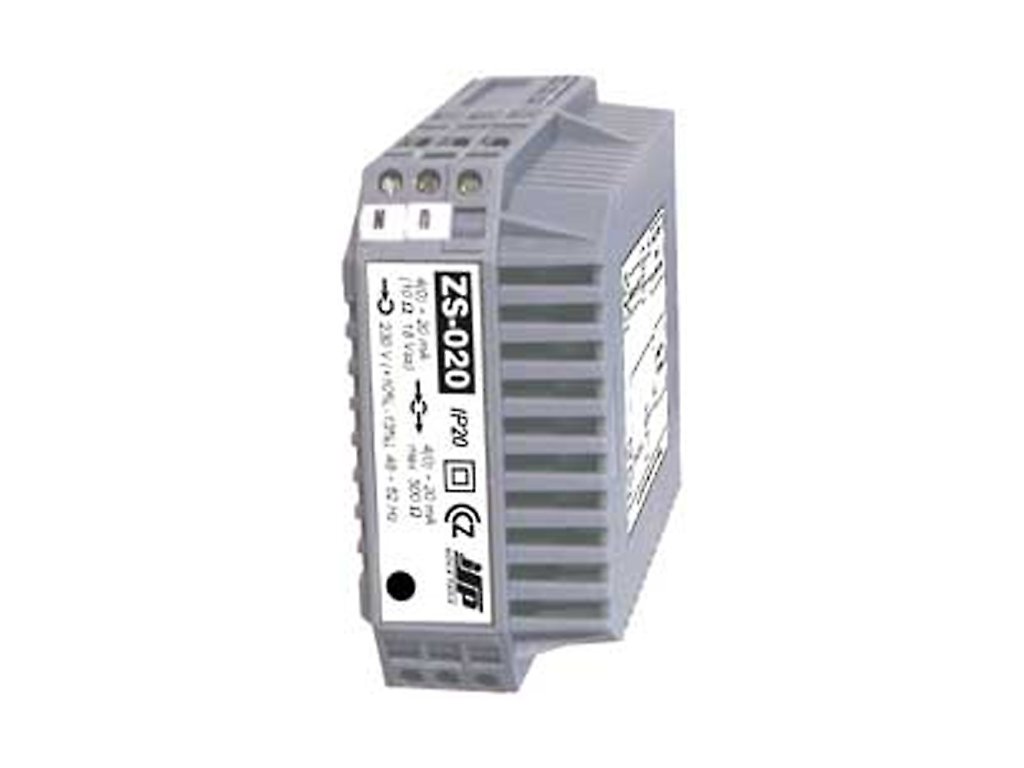

ZS-020 Isolator and stabilized power supply without/with HART communication

a0026

Input 230 VAC • Output 15–19 VDC • 0/4–20 mA isolator with HART support

Detailed information

Product detailed description

Product features ZS-020 Isolator and stabilized power supply without/with HART communication

Galvanic isolation of current signal and power supply for transmitter
Isolation of 4(0) to 20 mA signal with accuracy 0,1 %, or conversion of 4 to 20 mA signal into 0 to 20 mA, 4 to 20 mA signal into 0 to 5 mA, active or passive output
Two-way transmission of HART communication signal across galvanic isolation
Dielectric strength 4000 VAC against power supply circuit and 2500 VAC against transmitter powering circuit
Housing IP 20 (to DIN rails TS 35 and TS 32)
High resistance to interference according to EN 61326-1 (industrial environment)
