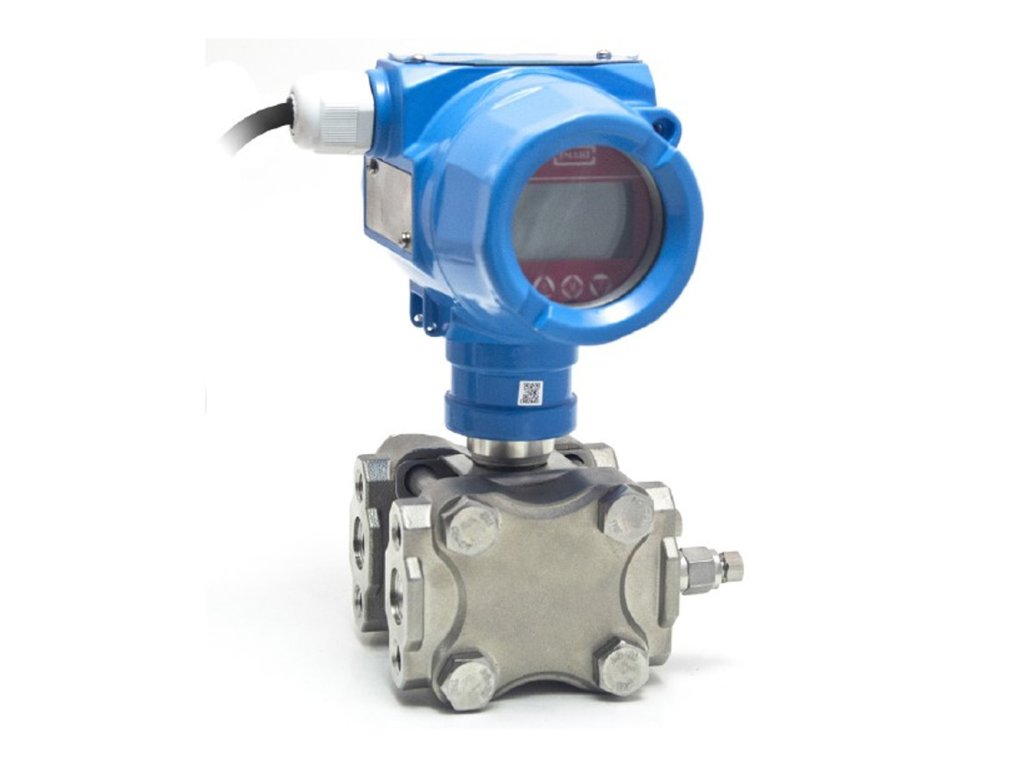

D5620 Precise SMART pressure sensor with HART communication

d3013

• Ranges from 200 Pa to 10 MPa • 4–20 mA HART output • Accuracy up to 0.075%

Detailed information

Product detailed description

Product features D5620 Precise SMART pressure sensor with HART communication

Only six basic ranges cover pressures from 2 kPa to 40 MPa.
4 to 20 mA programmable current output with HART communication.
Easily configurable and scalable up to 1:20, sensor zeroing.
Accuracy of 0.1% in reference conditions and 0.25% FS over the entire ambient temperature range -20 to 80 °C.
Stainless steel separating diaphragm.
Robust aluminium housing with display.
Can be reconfigured using built-in buttons,
HARTConf configurator or HARTWinConf and standard HART modem.
