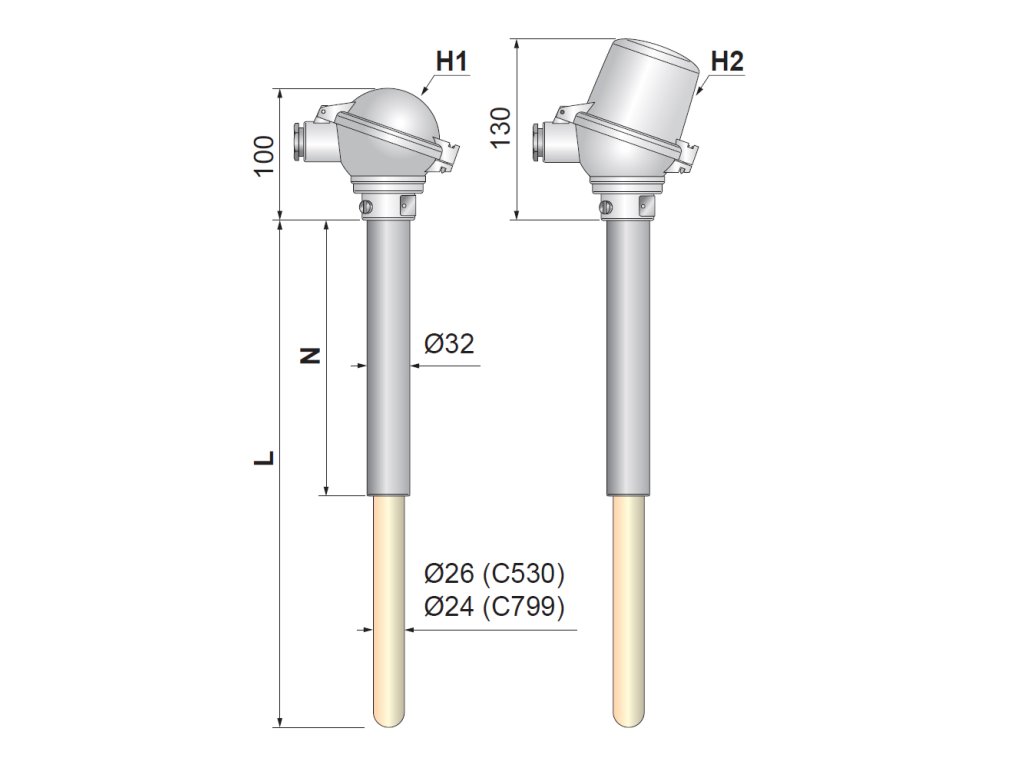

T1580 C24/C26 Straight thermocouple temperature sensors with ceramic protective tube CeraTEMP® 80

Product detailed description

Product features T1580 C24/C26 Straight thermocouple temperature sensors with ceramic protective tube CeraTEMP® 80

Formerly T1523, T1524, T1527.

• Wire thermocouple 1x/2x “K”, “S”,“B” (with branch diameter Ø 0.5, 2 or 3 mm).
• Measuring range -40 to +1200 °C (“K“), 0 to +1600 °C (“S“), +300 to +1800 °C (“B“).
• Accuracy class 1, 2, 3 according to EN 60584-1.
• Protective tube material C530/C610 or C799.
• Optional length of protective tube.
• Housing IP 53, IP 65.
• Mounting of temperature sensor by fixing shift flange.
• Optional headmounted transmitter with output 4 to 20 mA, HART, Profibus, Fieldbus, including version with galvanic isolation and intrinsically safe version.
