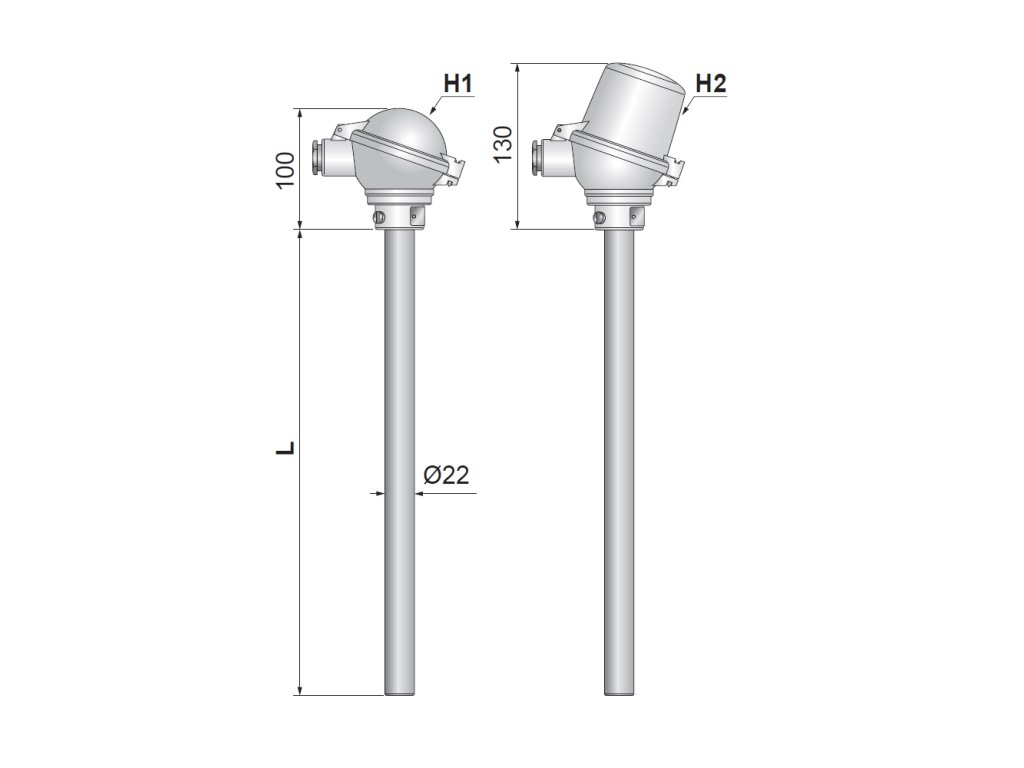

T1580 K22 Straight thermocouple temperature sensors with steel protective tube CeraTEMP® 80

c0318

• Thermocouple sensors (wire-type) • Temperature ranges: -40 to +1200 °C • Accuracy classes 1, 2 • Steel protection tube 22 mm diameter

Detailed information

Product detailed description

Product features T1580 K22 Straight thermocouple temperature sensors with steel protective tube CeraTEMP® 80

Formerly T1512

Wire thermocouple 1x/2x, “J”,“K” (with branch diameter 2 or 3 mm).
Measuring range, -40 to +900 °C (“J“), -40 to +1200 °C (“K“).
Accuracy class 1, 2, according to EN 60584-1.
Material of protective tube steel 1.4762, 1.4845 or KANTHAL AF.
Optional length of protective tube.
Mounting of temperature sensor by fixing shift pipe union or flange.
Housing IP 53.
Optional headmounted transmitter with output 4 to 20 mA, HART, Profibus, Fieldbus, including version with galvanic isolation and intrinsically safe version.
